Cosen SH-500M Semi-Automatic

Hydraulic Miter Cutting Band Saw

The enhanced heavy-duty swivel sawhead allows the user to cut at any angle between 90 degrees

(straight cut) and 30 degree (miter cut). The precision pivot system, facilitates easy and accurate adjustment for angle cuts as well as secure lockdown. Cosen's SH-500M has a protractor and pointer in clear view and away from any chips covering the numbers. It also features hard stops for 90, 45, and 30 degree for quick angle set up. Rigid and heavy-duty pivot and trunion insure long machine life.

Semi-Automatic Band Saw Cosen Model SH-500M
Cut Capacity and machine specifications for Cosen SH-500M Horizontal Band Saw - Industry Saw & Machinery Sales

Features:

  • ´╗┐Swivel saw head allows miter cutting from 0 degrees to 60 degrees
  • Rigid and heavy-duty pivot and trunion insure support
  • Hardened worm gear for durability
  • Hardstops at 45, and 60 degrees for quick angle set up

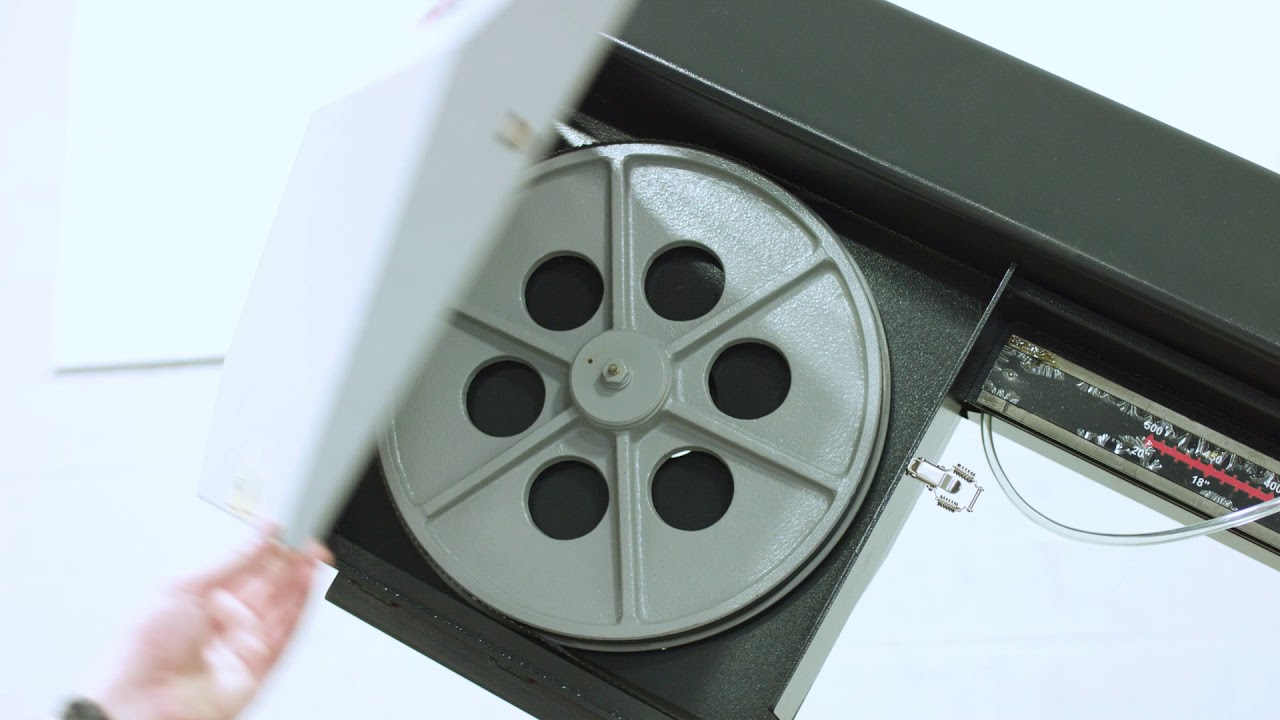

  • Blade drive equipped with variable pulley system
  • Adjustable flood coolant system
  • Motor driven, synchronized wire blade brush
  • Carbide blade guides and bearing provides additional blade support
  •  Rigid cast-iron guide arms
  • Full stroke machine vise
  • Rigid cast-iron hydraulic vise
  • Adjustable downfeed control
  • Adjustable material stop
  • Saw head automatically raises after each cut.
